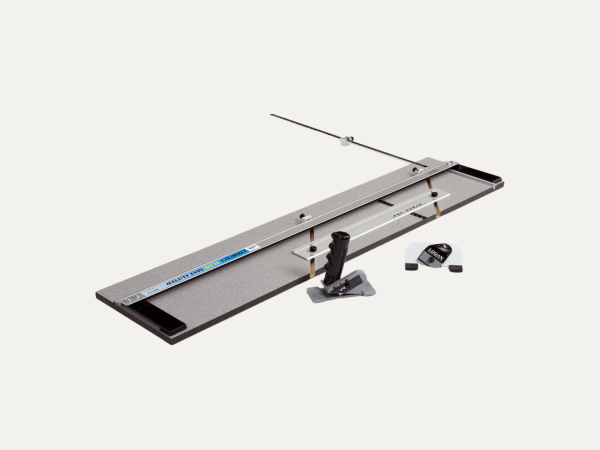

Logan 350-1 Compact Elite Mount Cutter

Excellent value, the Logan Compact Elite is a versatile, portable 32″ (81cm) capacity mount cutter taking you a few steps beyond the Compact Classic but without raising the price significantly.

£229.99 inc. VAT

✔ In Stock

SKU: EA0011NK Category:

Description

Excellent value, the Logan Compact Elite is a versatile, portable 32″ (81cm) capacity mount cutter taking you a few steps beyond the Compact Classic but without raising the price significantly.

It includes:

  • fully hinged guide rail to guide cutting heads
  • scaled production stop
  • built-in squaring bar for holding mountboard square,
  • push style 2000 bevel cutting head with start and stop indicator
  • pull style 701-1 straight cutting head for downsizing mat board and foam board,
  • built-in carry handle in box
  • five extra blades
  • a fully illustrated matting instruction guide.

It provides affordable and professional results. It features an open-ended guide rail, allowing bevel cuts in mountboards of any size. You can cut down boards with lengths up to 32″ (81.3 cm).

This system uses Logan 270 blades

Usage Level Light
Model Number & Capacity 350‑1 = 32″ (81 cm)
Squaring Function Squaring bar
Minimum Border Size 3/4″ (19 mm)
Maximum Border Size 4-1/2″ (11.4 cm)
Hinging Guide Rail Yes
Base Board Type 1/2″ MDF
Parallel Mat Guide Yes
Production Stops Yes
Bevel Cutter Push Style
Straight Cutter Pull Style 701‑1
Cuts Standard Thickness Mat Board Yes
Cuts 8 Ply No
Straight Cuts Foam Board Up to 3/16″ (5 mm)
Cuts Glass No
Cuts Plexi No
Cuts Paper/Photos No
Replacement Blade 270

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Videos

Documents

350-1-Owners-Manual

350-1 Parts List

Compact
Classic
Compact
Elite
Artist
Elite
Simplex
Classic
Usage Level Light Light All Purpose All Purpose
Model Number & Capacity 301‑1 = 32" (81 cm) 350‑1 = 32" (81 cm) 450‑1 = 40" (101 cm) 550‑1 = 40" (101 cm)
Squaring Function No Squaring bar Squaring bar Full 32" (81 cm) Squaring Arm
Minimum Border Size 3/4" (19 mm) 3/4" (19 mm) 3/4" (19 mm) 3/4" (19 mm)
Maximum Border Size 4-1/2" (11.4 cm) 4-1/2" (11.4 cm) 5-1/2" (14 cm) 5-1/2" (14 cm)
Hinging Guide Rail No Yes Yes Yes
Base Board Type 1/2" MDF 1/2" MDF 3/4" MDF 3/4" MDF
Parallel Mat Guide Yes Yes Yes Yes
Production Stops No Yes Yes Yes
Bevel Cutter Push Style Push Style Pull Style Pull Style
Straight Cutter Mat Knife Pull Style 701‑1 Pull Style 701‑1 Pull Style 701‑1
Cuts Standard Thickness Mat Board Yes Yes Yes Yes
Cuts 8 Ply No No No No
Straight Cuts Foam Board Up to 3/16" (5 mm) Up to 3/16" (5 mm) Up to 3/16" (5 mm) Up to 3/16" (5 mm)
Cuts Glass No No No No
Cuts Plexi No No No No
Cuts Paper/Photos No No No No
Replacement Blade 270 270 270 270
View View View View
