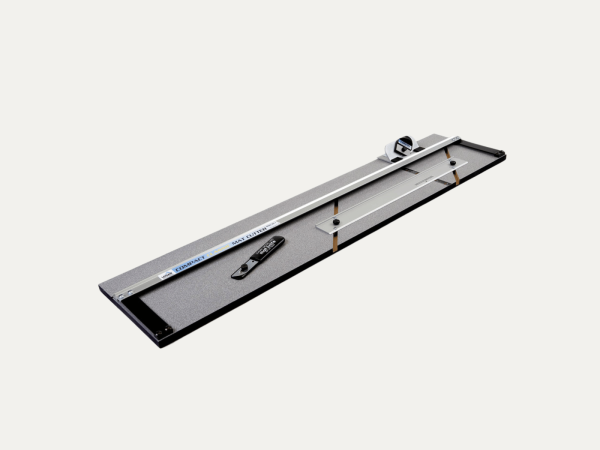

301-1 Compact Classic Mount Cutter

The Logan 301 compact classic mount cutter is perfect for the novice framer who needs to cut custom sized mounts from home but doesn’t want to spend to much.



£199.00 inc. VAT

✔ In Stock

SKU: EA0056NK Category:

Description

The Logan 301-1 Compact Classic is an exceptionally versatile, portable mount cutting system 81cm (32″) long. If you are needing to mount artwork on a regular basis, the Logan Compact represents a great buy for the home framer, as it provides affordable, professional results.

It provides affordable and professional results. It features:

  • an open ended guide rail allowing bevel cuts in mat boards of any size,
  • capacity to downsize mountboard up to 81.3 cm ( 32″),
  • a parallel mount guide for setting border widths from 19 mm (3/4″) to 114 mm (4.5″),
  • a spring loaded serrated guide rail to guide cutting heads,
  • a push style bevel cutting head with start and stop indicator,
  • a mat knife for downsizing mountboard and foamboard,
  • a built-in carry handle in box,

five extra blades included.

This system uses Logan 270 blades

Usage Level Light
Model Number & Capacity 301‑1 = 32″ (81 cm)
Squaring Function No
Minimum Border Size 3/4″ (19 mm)
Maximum Border Size 4-1/2″ (11.4 cm)
Hinging Guide Rail No
Base Board Type 1/2″ MDF
Parallel Mat Guide Yes
Production Stops No
Bevel Cutter Push Style
Straight Cutter Mat Knife
Cuts Standard Thickness Mat Board Yes
Cuts 8 Ply No
Straight Cuts Foam Board Up to 3/16″ (5 mm)
Cuts Glass No
Cuts Plexi No
Cuts Paper/Photos No
Replacement Blade 270

Videos

Documents

301-1-Instruction-Manual

301-1 Parts List

Compact
Classic
Compact
Elite
Artist
Elite
Simplex
Classic
Usage Level Light Light All Purpose All Purpose
Model Number & Capacity 301‑1 = 32" (81 cm) 350‑1 = 32" (81 cm) 450‑1 = 40" (101 cm) 550‑1 = 40" (101 cm)
Squaring Function No Squaring bar Squaring bar Full 32" (81 cm) Squaring Arm
Minimum Border Size 3/4" (19 mm) 3/4" (19 mm) 3/4" (19 mm) 3/4" (19 mm)
Maximum Border Size 4-1/2" (11.4 cm) 4-1/2" (11.4 cm) 5-1/2" (14 cm) 5-1/2" (14 cm)
Hinging Guide Rail No Yes Yes Yes
Base Board Type 1/2" MDF 1/2" MDF 3/4" MDF 3/4" MDF
Parallel Mat Guide Yes Yes Yes Yes
Production Stops No Yes Yes Yes
Bevel Cutter Push Style Push Style Pull Style Pull Style
Straight Cutter Mat Knife Pull Style 701‑1 Pull Style 701‑1 Pull Style 701‑1
Cuts Standard Thickness Mat Board Yes Yes Yes Yes
Cuts 8 Ply No No No No
Straight Cuts Foam Board Up to 3/16" (5 mm) Up to 3/16" (5 mm) Up to 3/16" (5 mm) Up to 3/16" (5 mm)
Cuts Glass No No No No
Cuts Plexi No No No No
Cuts Paper/Photos No No No No
Replacement Blade 270 270 270 270
View View View View
